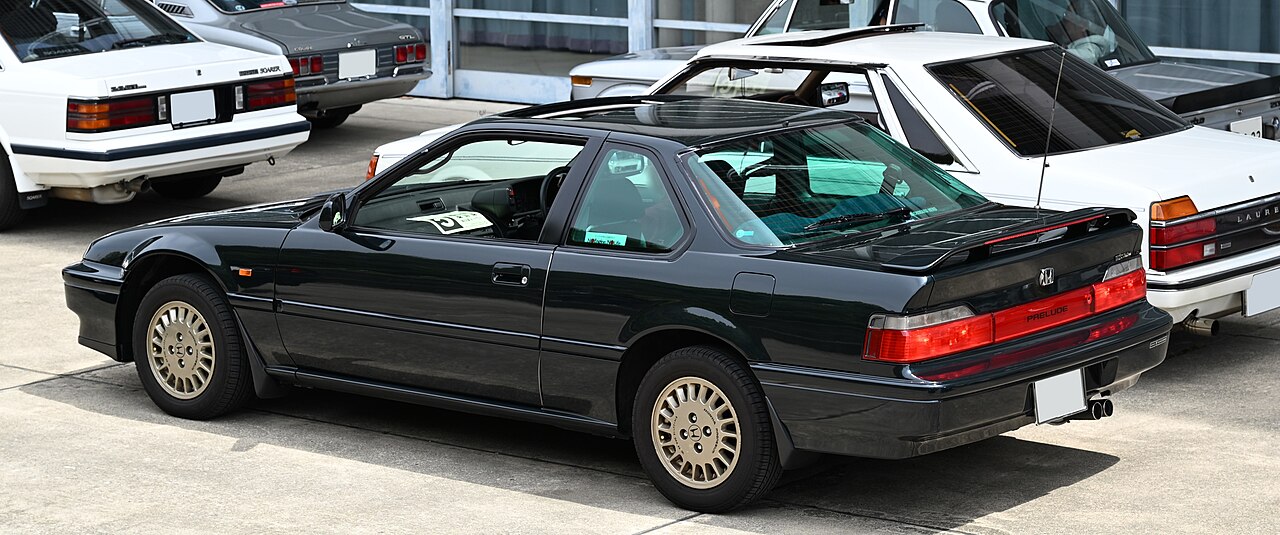

The Honda Prelude occupies an interesting spot in JDM history: less mythologized than the NSX or Civic Type R, but genuinely significant as one of Honda’s technology showcases, introducing electronically controlled four-wheel steering (4WS) and, from the fourth generation (BB1–BB4, 1991–1996) onward, the naturally aspirated VTEC H22A engine that would go on to define the SiR trim through the fifth generation (BB5–BB8). This guide focuses on what the H22A actually demands from an owner — because unlike some JDM engines with one obvious weak point, the H22 has several smaller, well-documented issues that add up if ignored, plus a 4WS system with its own specific failure pattern.
📋 What You’ll Learn in This Guide
- Why the H22A’s oil leaks are common but rarely serious on their own
- The single most important maintenance item on any H22-equipped Prelude
- A specific oil consumption issue tied to one particular H22A variant
- How the electronic 4WS system actually tends to fail
- Realistic mileage expectations for a well-maintained example
Oil Leaks: Common, But Usually Not the Real Problem
The valve cover gasket and camshaft seal are the two most common sources of oil leaks on any H22-equipped Prelude, largely because the engine runs hot and both components age accordingly. Neither leak is a reason to walk away from an otherwise sound car — the standard approach is to replace the valve cover gasket first and retorque the cover to spec before assuming anything more serious is happening. Treat visible oil weeping around the valve cover as a normal maintenance item to budget for, not a red flag about the engine’s overall condition.
The Timing Belt Tensioner: The One Item You Cannot Skip
The H22’s factory hydraulic automatic timing belt tensioner uses internal oil seals that gradually bleed down pressure over time. When that happens, the timing belt can go slack and jump teeth — and because the H22 is an interference engine, that results in valve-to-piston contact and catastrophic internal damage. This is, without question, the single most important maintenance item to verify on any H22-equipped Prelude: confirm the timing belt and tensioner have been replaced within the manufacturer’s recommended interval, and treat any uncertainty about this specific item as a serious risk rather than a minor unknown.
💡 Tip
Ask specifically for a receipt or documentation showing the timing belt and hydraulic tensioner were replaced together, not just the belt alone — replacing only the belt while leaving a weakened original tensioner in place doesn’t fully address the underlying failure mode, and a seller who replaced “the timing belt” without mentioning the tensioner may not have addressed the actual risk.
The H22A4’s Specific Oil Consumption Issue
One particular H22A variant, the H22A4, is known for elevated oil consumption tied to its Fiber Reinforced Metal (FRM) cylinder walls, which can experience accelerated piston ring wear if the engine is driven hard consistently without disciplined oil-level monitoring. This isn’t a universal H22 problem — it’s specific to this variant — but if you’re looking at a car with this particular engine code, ask directly about oil consumption habits and check for documented, frequent oil-level checks rather than assuming all H22 engines behave identically in this respect.
Electronic 4WS: A Real Feature With a Known Failure Point
The electronically controlled four-wheel steering system on 4WS-equipped Preludes relies on a rear steering actuator with internal electronic position sensors, and these sensors are prone to failure from dry solder joints as they age — when this happens, the control computer simply shuts the rear steering system down entirely rather than failing dangerously. A car with a disabled 4WS system will still drive safely on the front wheels alone, but it loses the handling characteristic that made the system notable in the first place. If 4WS function specifically matters to you, have it tested rather than assuming it works because the car has the badge.
⚠️ Caution
Don’t treat the timing belt tensioner, oil consumption habits, and 4WS function as optional checks to skip on a car that otherwise “seems fine.” Each of these is a well-documented, specific failure pattern on this platform, and a car that looks and drives well on a short test can still be hiding a tensioner nearing the end of its service life or a 4WS system that was quietly disabled some time ago.
Realistic Mileage Expectations
With consistent maintenance, H22A-equipped Preludes can reasonably be expected to cover somewhere in the range of 150,000 to 300,000 miles without major repair work, with the actual figure depending heavily on how hard the engine has been driven and how disciplined the maintenance history has been. This is a genuinely durable engine platform when properly cared for — the documented issues above are manageable with attention, not signs of fundamental unreliability.
Frequently Asked Questions
Q: Is the H22A a risky engine to buy compared to other JDM VTEC options?
A: Not inherently — its issues are well-documented and manageable with proper maintenance, particularly around the timing belt tensioner. It’s a fundamentally sound engine that rewards a buyer who checks the right specific items rather than one that demands unusual caution overall.
Q: Should I avoid a Prelude with a disabled 4WS system?
A: Not necessarily, if the price reflects it. A disabled 4WS system doesn’t affect basic drivability or safety, so it comes down to whether the four-wheel-steering handling characteristic specifically matters to you and whether you’re willing to pay for a functioning system versus a car where it’s been switched off.
Final Thoughts
The Prelude’s reputation for being overshadowed by flashier Honda classics is arguably unfair — the H22A VTEC engine and electronic 4WS system represent genuine engineering ambition, and both hold up well when properly maintained. Prioritize timing belt and tensioner documentation above everything else, ask specifically about oil consumption on H22A4-equipped cars, and verify 4WS function if it matters to you. Get those fundamentals confirmed, and the Prelude remains one of the more technically interesting and currently underappreciated JDM coupes of its era.
